Hiding and Showing Annotations in Parts and Assemblies

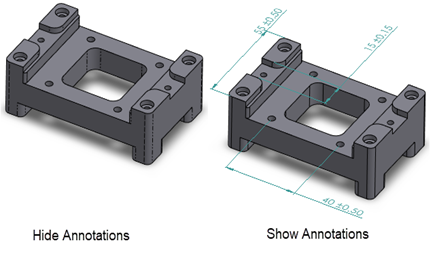

You can hide and show DimXpert annotations in parts and assemblies and turn on and off the visibility from the same tool.

To hide and show annotations in parts and assemblies:

Click View > Hide/Show > Annotations.

Search 'Hiding and Showing Annotations in Parts and Assemblies' in the SOLIDWORKS Knowledge Base.
