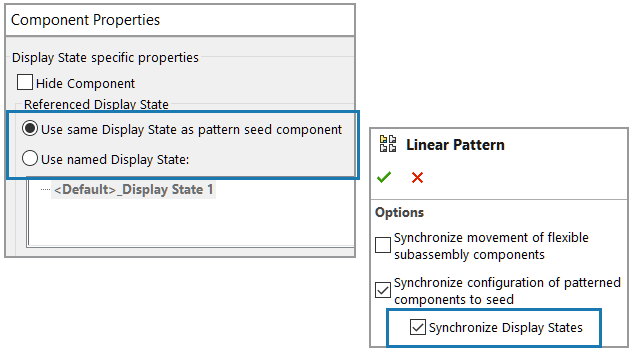

Linking Display State to the Patterned Seed Component You can link the display state of the patterned components to the patterned seed component. Use the following options in the Component Properties dialog box to select the display state: Use same Display State as pattern seed component Links the display state of the patterned components to the patterned seed component.Disables the list of display states. Use named Display State Enables the list of display states.This option is available when the patterned component references a different configuration for the patterned seed component and the display type is a linked display state. You can link the display state in any Component Pattern PropertyManager. In the PropertyManager, under Synchronize configuration of patterned components to seed, select Synchronize display states. To link the display state to the patterned seed component: Open a model that contains patterned components. In the FeatureManager design tree, expand a patterned component. Under the expanded patterned component, right-click a component and click Component Properties . In the dialog box, select Use same Display State as pattern seed component. When Synchronize display states is selected in a Component Pattern PropertyManager, Use same Display State as pattern seed component is selected and cannot be cleared. Parent topicAssemblies Assembly Visualization SpeedPak Instances Interference Detection in Large Design Review Mode Performance Evaluation Inserting Assemblies with Rolled-Back Features Copy with Mates Performance When Calculating Mass Properties Controlling the Visibility of Part Sketches in Assemblies
