Saving DimXpert Dimensions to Library Features (2025 SP1)

You can save DimXpert dimensions to library features.

Benefits: You can save the DimXpert dimensions to library feature parts to reuse them when you use a library feature on a model.

To save DimXpert dimensions to library features:
  1. Click Add to Library on the Task Pane Design Library tab.
  2. In the PropertyManager:
    1. For Items to Add, select features from the graphics area or FeatureManager design tree.
    2. For File name, type a file name (the default is document name.)
    3. For the Design Library folder, select a subfolder to add the library feature.
    4. For Description, type a description to be displayed in the item's tooltip.

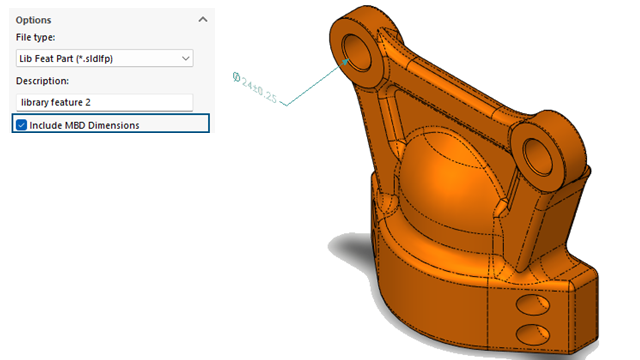

    5. Select Include MBD Dimensions and click .
