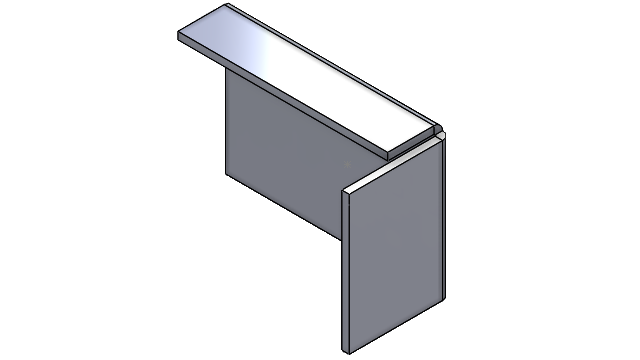

When you create edge flanges in sheet metal parts, you can create
flanges with different
lengths.

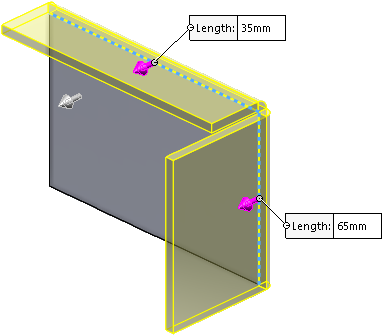

In the PropertyManager, you can select
Multi Length Flange and specify the length of
each flange in the feature. You can specify the
Length
in the PropertyManager or in the
graphics area.

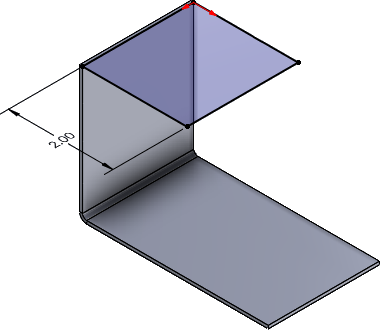

In , under Edge Flange Options, you
can select Automatically add Flange Length dimension to
flange profiles.
When selected:
- SOLIDWORKS automatically adds length dimensions to all edge
flange profiles
- The sketch dimension (not the feature dimension) controls the
flange length
