Selecting a Profile Size from Design Tables and Configuration Tables (2025 SP2)

For weldments and structure systems, you can select the size of the profile from design tables and configuration tables.

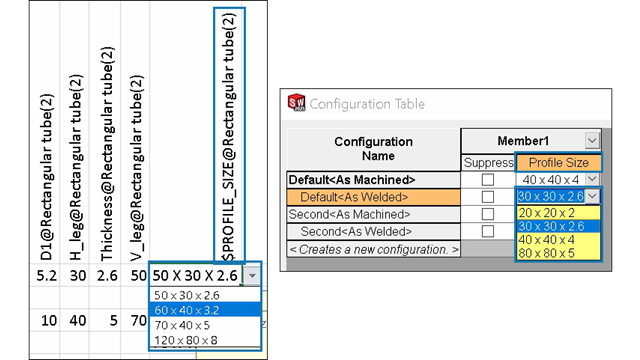

For the configured profiles, the design table and configuration table display the Profile Size column where you can select a size.

To control the profile size in design tables, the column header uses the following syntax:
  • Weldments: $PROFILE_SIZE@feature_name
  • Structure systems: $PROFILE_SIZE@member_name
To insert a design table:
  1. Open a part that has multiple configurations.
  2. Click Excel Design Table (Tools toolbar) or Insert > Tables > Excel Design Table.
You can also select the profile size by editing a design table.
To access a configuration table:
  1. In a part that has multiple configurations, click the ConfigurationManager tab.
  2. Expand Tables .
  3. Right-click Configuration Table and click Show Table.
