SOLIDWORKS PDM Professional API Help

Update File Raw References Example (VB.NET)

This example shows how to get file references directly from a file and update file references directly in that file.

NOTE: If using the primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' 2. Click File > New > Project > Visual Basic,
Windows, Desktop > Windows Forms App
' 3. Type RawReferences in Project name.
' 4. For Location, click ... and navigate to the folder where to create the project.
' 5. Click Next
.
' 6. Select Framework.
' 7. Click Create.


' 8. Click Show All Files in the Solution Explorer toolbar and expand
'    Form1.vb in the Solution Explorer. ' 9. Add dependencies and safely pass arrays of structures.

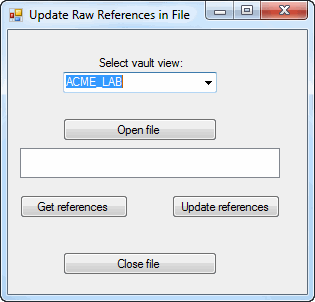

'10. Replace the code in Form1.vb with this code. '11. To create the form, replace the code in Form1.Designer.vb with  '    this code. '12. Check out a SOLIDWORKS assembly or drawing document whose file  ' references you want to update and check out all of the document's ' referenced files. '13. Click Debug > Start Debugging or press F5. ' ' Postconditions:  '  1. Displays the Update Raw References in File dialog box. '  2. Select the vault view where the SOLIDWORKS assembly or '     drawing document that you checked out in '     Preconditions step 4 resides. '  3. Click Open file. '  4. Displays the Open a file dialog box. '     a. Click the assembly or drawing document you checked '        out in Preconditions step 4. '     b. Click Open. '     The opened file's path and file name appear  '     in the Update Raw References in File dialog box. '  5. Click Get references. '     a. Displays a message box for each referenced file. ' The referenced file's ID, path and file name, file name,  ' type, and number of times referenced appear in the ' message box. '     b. Click OK to close each message box. '  6. Rename one of the referenced files in the selected vault ' in File Explorer. '  7. Click Update references. '     a. Displays a message box confirming that references were updated. '     b. Click OK to close the message box. '  8. Click Get references. '     a. Displays a message box for each referenced file. ' The referenced file's ID, path and file name, file name,  ' type, and number of times referenced appear in the ' message box. Note that the renamed file is now a referenced  ' file of the open document. '     b. Click OK to close each message box. '  9. Click Close file. ' 10. Click OK to close the message box confirming that the ' open document was closed. ' 11. Close the Update Raw References in File dialog box. ' 12. Check in the SOLIDWORKS assembly or drawing and its  ' file references. '---------------------------------------------------------------------------- 'Form1.vb Imports EPDM.Interop.epdm Public Class Form1     Private vault1 As IEdmVault5 = Nothing     Dim aFile As IEdmFile5     Dim fileName As String     Dim rawRefs As IEdmRawReferenceMgr     Dim refs() As EdmRawReference = Nothing     Private Sub Form1_Load( _       ByVal sender As System.Object, _       ByVal e As System.EventArgs) _       Handles MyBase.Load         Try             Dim vault As IEdmVault8 = New EdmVault5             Dim Views() As EdmViewInfo = Nothing             vault.GetVaultViews(Views, False)             VaultsComboBox.Items.Clear()             For Each View As EdmViewInfo In Views                 VaultsComboBox.Items.Add(View.mbsVaultName)             Next             If VaultsComboBox.Items.Count > 0 Then                 VaultsComboBox.Text = VaultsComboBox.Items(0)             End If         Catch ex As Runtime.InteropServices.COMException             MessageBox.Show("HRESULT = 0x" + _               ex.ErrorCode.ToString("X") + vbCrLf + _               ex.Message)         Catch ex As Exception             MessageBox.Show(ex.Message)         End Try     End Sub     Public Sub UpdateButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles UpdateButton.Click         Try             'Only create a new vault object             'if one hasn't been created yet             If vault1 Is Nothing Then                 vault1 = New EdmVault5()             End If             If Not vault1.IsLoggedIn Then                 'Log into selected vault as the current user                 vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())             End If             'Update the file references directly in the file             rawRefs.UpdateReferences(refs)             MessageBox.Show("File references updated.")         Catch ex As System.Runtime.InteropServices.COMException             MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)         Catch ex As Exception             MessageBox.Show(ex.Message)         End Try     End Sub     Public Sub OpenButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles OpenButton.Click         Try             'If one hasn't been created yet             If vault1 Is Nothing Then                 vault1 = New EdmVault5()             End If             If Not vault1.IsLoggedIn Then                 'Log into selected vault as the current user                 vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())             End If             'Set the initial directory in the Open a file dialog             OpenFileDialog1.InitialDirectory = vault1.RootFolderPath             'Show the Open a file dialog             Dim DialogResult As System.Windows.Forms.DialogResult = Nothing             DialogResult = OpenFileDialog1.ShowDialog()             If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then                 'Do nothing             Else                 'Open a file                 fileName = OpenFileDialog1.FileName                 FileListBox.Items.Add(fileName)                 aFile = vault1.GetFileFromPath(fileName)             End If             'Get IEdmRawReferences interface              rawRefs = vault1.CreateUtility(EdmUtility.EdmUtil_RawReferenceMgr)             Dim fileRefsSupported As Boolean             fileRefsSupported = rawRefs.Open(fileName)             If Not fileRefsSupported Then                 MessageBox.Show("File's format does not support file references.")                 Exit Sub             End If         Catch ex As System.Runtime.InteropServices.COMException             MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)         Catch ex As Exception             MessageBox.Show(ex.Message)         End Try     End Sub     Private Sub GetButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles GetButton.Click         Try             'Only create a new vault object             'if one hasn't been created yet             If vault1 Is Nothing Then                 vault1 = New EdmVault5()             End If             If Not vault1.IsLoggedIn Then                 'Log into selected vault as the current user                 vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())             End If             Dim arrSize As Integer             Dim i As Integer = 0             Dim message As String             'Get the file references directly from the file             rawRefs.GetReferences(refs)             arrSize = refs.Length             If arrSize = 0 Then                 MessageBox.Show("No file references for opened file.")                 Exit Sub             End If             While i < arrSize                 message = "File reference information: " + vbLf + vbLf                 message = message + "  Internal ID: " + refs(i).mbsRefID + vbLf                 message = message + "  Referenced how: " + refs(i).mbsIncludePath + vbLf                 message = message + "  Reference name: " + refs(i).mbsRefName + vbLf                 message = message + "  Number of times file referenced = " + refs(i).mlCount.ToString + vbLf                 Select Case refs(i).mlFlags                     Case EdmRawRefFlags.Edmrrf_Ghost                         message = message + "  Type = DWG files can store grandchildren as references" + vbLf                     Case EdmRawRefFlags.Edmrrf_InternalComponent                         message = message + "  Type = Not used" + vbLf                     Case EdmRawRefFlags.Edmrrf_Nothing                         message = message + "  Type = Normal file reference" + vbLf                 End Select                 i = i + 1                 MessageBox.Show(message)             End While         Catch ex As System.Runtime.InteropServices.COMException             MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)         Catch ex As Exception             MessageBox.Show(ex.Message)         End Try     End Sub     Private Sub CloseButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles CloseButton.Click         Try             'Only create a new vault object             'if one hasn't been created yet             If vault1 Is Nothing Then                 vault1 = New EdmVault5()             End If             If Not vault1.IsLoggedIn Then                 'Log into selected vault as the current user                 vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())             End If             'Close the file             rawRefs.Close()             MessageBox.Show("File closed.")         Catch ex As System.Runtime.InteropServices.COMException             MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)         Catch ex As Exception             MessageBox.Show(ex.Message)         End Try     End Sub End Class
'Form.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.Label1 = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.OpenButton = New System.Windows.Forms.Button()
        Me.GetButton = New System.Windows.Forms.Button()
        Me.UpdateButton = New System.Windows.Forms.Button()
        Me.CloseButton = New System.Windows.Forms.Button()
        Me.FileListBox = New System.Windows.Forms.ListBox()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.SuspendLayout()
        '
        'Label1
        '
        Me.Label1.AutoSize = True
        Me.Label1.Location = New System.Drawing.Point(88, 26)
        Me.Label1.Name = "Label1"
        Me.Label1.Size = New System.Drawing.Size(91, 13)
        Me.Label1.TabIndex = 0
        Me.Label1.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(55, 42)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(154, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'OpenButton
        '
        Me.OpenButton.Location = New System.Drawing.Point(55, 88)
        Me.OpenButton.Name = "OpenButton"
        Me.OpenButton.Size = New System.Drawing.Size(154, 23)
        Me.OpenButton.TabIndex = 2
        Me.OpenButton.Text = "Open file"
        Me.OpenButton.UseVisualStyleBackColor = True
        '
        'GetButton
        '
        Me.GetButton.Location = New System.Drawing.Point(12, 165)
        Me.GetButton.Name = "GetButton"
        Me.GetButton.Size = New System.Drawing.Size(108, 23)
        Me.GetButton.TabIndex = 3
        Me.GetButton.Text = "Get references"
        Me.GetButton.UseVisualStyleBackColor = True
        '
        'UpdateButton
        '
        Me.UpdateButton.Location = New System.Drawing.Point(164, 165)
        Me.UpdateButton.Name = "UpdateButton"
        Me.UpdateButton.Size = New System.Drawing.Size(108, 23)
        Me.UpdateButton.TabIndex = 4
        Me.UpdateButton.Text = "Update references"
        Me.UpdateButton.UseVisualStyleBackColor = True
        '
        'CloseButton
        '
        Me.CloseButton.Location = New System.Drawing.Point(55, 222)
        Me.CloseButton.Name = "CloseButton"
        Me.CloseButton.Size = New System.Drawing.Size(154, 23)
        Me.CloseButton.TabIndex = 5
        Me.CloseButton.Text = "Close file"
        Me.CloseButton.UseVisualStyleBackColor = True
        '
        'FileListBox
        '
        Me.FileListBox.FormattingEnabled = True
        Me.FileListBox.Location = New System.Drawing.Point(12, 118)
        Me.FileListBox.Name = "FileListBox"
        Me.FileListBox.Size = New System.Drawing.Size(260, 30)
        Me.FileListBox.TabIndex = 6
        '
        'OpenFileDialog1
        '
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Multiselect = True
        Me.OpenFileDialog1.Title = "Open a file"
        '
        'Form1
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 264)
        Me.Controls.Add(Me.FileListBox)
        Me.Controls.Add(Me.CloseButton)
        Me.Controls.Add(Me.UpdateButton)
        Me.Controls.Add(Me.GetButton)
        Me.Controls.Add(Me.OpenButton)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.Label1)
        Me.Name = "Form1"
        Me.Text = "Update References in File"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents Label1 As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents OpenButton As System.Windows.Forms.Button
    Friend WithEvents GetButton As System.Windows.Forms.Button
    Friend WithEvents UpdateButton As System.Windows.Forms.Button
    Friend WithEvents CloseButton As System.Windows.Forms.Button
    Friend WithEvents FileListBox As System.Windows.Forms.ListBox
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog

End Class
