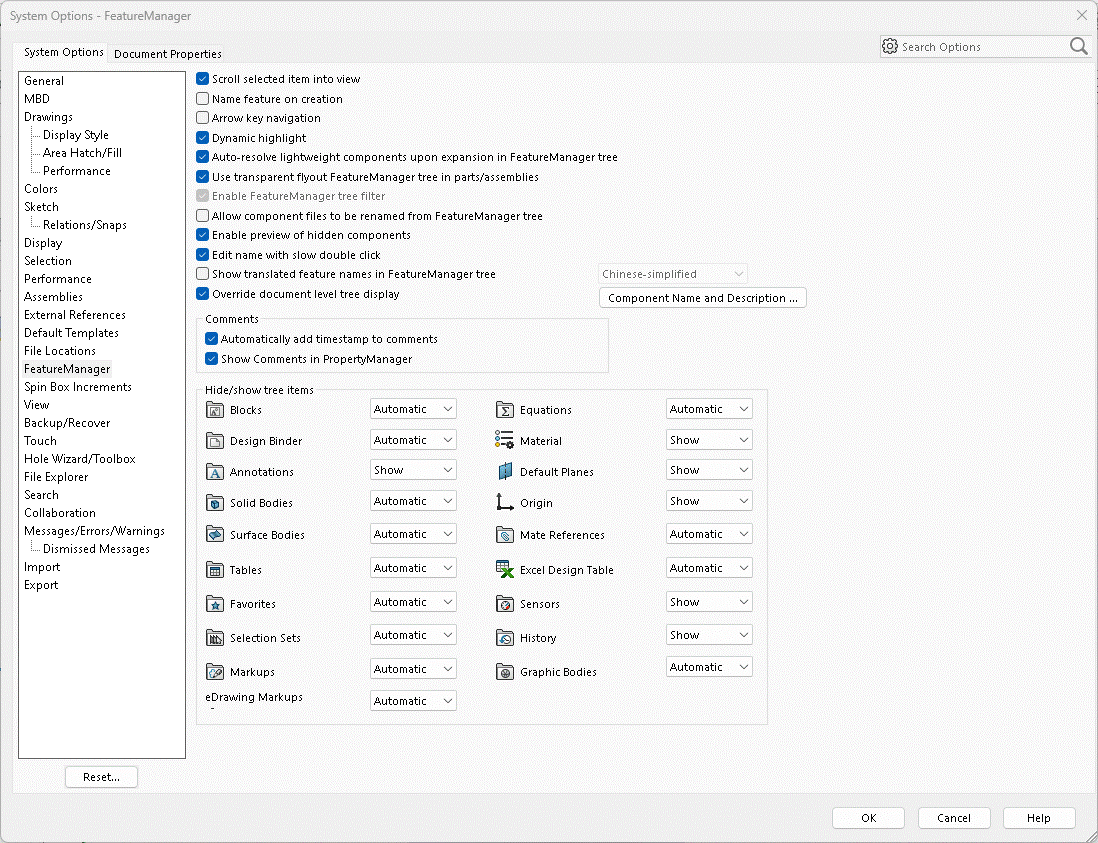

Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comment |
|
Scroll selected item into view |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible,
<OnFlag>) |
Boolean value |
Specifies whether FeatureManager design tree should automatically scroll
to display feature icon related to selected items in graphics area |
|
Name feature on creation |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerNameFeatureWhenCreated)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerNameFeatureWhenCreated,
<OnFlag>) |
Boolean value
|
Specifies to automatically select new feature in FeatureManager design
tree to name it |
|
Arrow key navigation |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerKeyboardNavigation)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerKeyboardNavigation,
<OnFlag>) |
Boolean value
|
Specifies whether arrow keys can be used to traverse FeatureManager
design tree, and expand or collapse design tree and its contents |
|
Dynamic highlight |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerDynamicHighlight)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerDynamicHighlight,
<OnFlag>) |
Boolean value
|
Specifies whether geometry in graphics area is highlighted when pointer
passes over item in FeatureManager design tree |
|
Auto-resolve lightweight components upon expansion in FeatureManager tree |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoResolveLightweightCompUponExpInFMTree)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoResolveLightweightCompUponExpInFMTree,
<OnFlag>) |
Boolean value |
Specifies whether to automatically resolve lightweight components when they
are expanded in the FeatureManager design tree |
|
Use transparent flyout FeatureManager tree in parts/assemblies |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerTransparentFlyout)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerTransparentFlyout,
<OnFlag>) |
Boolean value
|
Specifies whether to use transparent flyout FeatureManager in part and
assembly documents |
|
Enable FeatureManager tree filter |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableTreeFilter)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableTreeFilter,
<OnFlag>) |
Boolean value |
Specifies whether to display the
FeatureManager design tree filter
Unlike the user interface, you can turn this setting on or
off when a model document is open |
Allow component files to be renamed from FeatureManager tree
(Not
supported in SOLIDWORKS Connected) |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableRenamingComponent)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableRenamingComponent,
<OnFlag>) |
Boolean value |
Specifies whether to enable renaming components |
|
Enable preview of hidden components |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnablePreviewHiddenComponents)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnablePreviewHiddenComponents,
<OnFlag>) |
Boolean value |
Specifies whether to enable preview of hidden components |
|
Edit name with slow double click |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEditNameWithSlowDoubleClick)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEditNameWithSlowDoubleClick,
<OnFlag>) |
Boolean value |
|
|
Show translated feature names in FeatureManager tree |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree,
<OnFlag>) |
Boolean value |
|
|
Language drop-down |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTranslatedLanguage)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTranslatedLanguage,
swAutoHideShowResponse_e.<Value>)
|
See
swUserPreferencesLanguages_e
for valid options |
Valid only if
swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree is set to
true. |
|
Override document level tree display |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings,
<OnFlag>) |
Boolean value|
Specifies whether to override document level display settings with
system level display settings. If this toggle is set to true, all the
dialog options in the Component Name and Description dialog launched at
the document level from the FeatureManager design tree are disabled. |
|
|

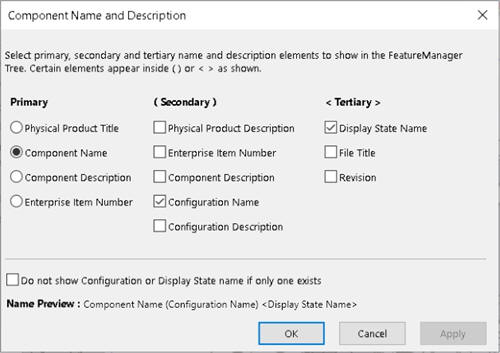

Component Name and Description - Primary -
Physical Product Title Component Name Component Description Enterprise
Item Number |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPrimaryComponentIdentifier)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPrimaryComponentIdentifier,
swComponentIdentifier_e.<Value>)
|
Valid options in
swComponentIdentifier_e:
swComponentIdentifier_PhysicalProductTitle
swComponentIdentifier_ComponentName swComponentIdentifier_ComponentDescription
swComponentIdentifier_EnterpriseItemNumber |
Valid only if swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings
is set to true. |
|
Component Name and Description - (Secondary) - Physical Product Description |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryPhysicalProductDescription)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryPhysicalProductDescription,
<OnFlag>) |
Boolean value |
Valid only for SOLIDWORKS Connected and when
swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set to true |
|
Component Name and Description - (Secondary) - Enterprise Item Number |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryEnterpriseItemNumber)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryEnterpriseItemNumber,
<OnFlag>) |
Boolean value |
Valid only: for SOLIDWORKS Connected, when
swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set to true, -
and - when swUserPreferenceIntegerValue_e.swPrimaryComponentIdentifier is not
set to swComponentIdentifier_e.swComponentIdentifier_EnterpriseItemNumber |
|
Component Name and Description - (Secondary) - Component Description |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryComponentDescription)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryComponentDescription,
<OnFlag>) |
Boolean value |
Valid only: when swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set
to true - and - when
swUserPreferenceIntegerValue_e.swPrimaryComponentIdentifier is not set to
swComponentIdentifier_e.swComponentIdentifier_ComponentDescription |
|
Component Name and Description - (Secondary) - Component Name |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryComponentName)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryComponentName,
<OnFlag>) |
Boolean value |
Valid only when swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set
to true |
|
Component Name and Description - (Secondary) - Configuration Description |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryConfigurationName)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSecondaryConfigurationName,
<OnFlag>) |
Boolean value |
Valid only when swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set
to true |
|
Component Name and Description - <Tertiary> - Display State Name |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryDisplayStateName)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryDisplayStateName,
<OnFlag>) |
Boolean value |
Valid only when swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set
to true |
|
Component Name and Description - <Tertiary> - File Title |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryFileTitle)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryFileTitle,
<OnFlag>) |
Boolean value |
Valid only for SOLIDWORKS Connected and when
swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set to true |
|
Component Name and Description - <Tertiary> - Revision |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryRevision)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTertiaryRevision,
<OnFlag>) |
Boolean value |
Valid only for SOLIDWORKS Connected and when
swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set to true |
|
Component Name and Description - Do not show Configuration or Display State name
if only one exists |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDoNotShowConfigOrDisplayStateName)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDoNotShowConfigOrDisplayStateName,
<OnFlag>) |
Boolean value |
Valid only when swUserPreferenceToggle_e.swOverrideTreeDisplaySysSettings is set
to true |
|
Comments - Automatically add timestamp to comments |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabAddTimeStampToComments)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabAddTimeStampToComments,
<OnFlag>) |
Boolean value |
|
|
Comments - Show Comments in PropertyManager |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabShowCommentsInPropertyManager)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabShowCommentsInPropertyManager,
<OnFlag>) |
Boolean value |
|
|
Select a configuration view for the FeatureManager Tree Area - Only CAD
Family View or Both CAD Family and Configurations (SOLIDWORKS Connected
only) |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swConfigurationViewForFeatureManagerTree)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swConfigurationViewForFeatureManagerTree,
swFeatureManagerTreeViewCADFamily_e.<Value>)
|
See
swFeatureManagerTreeViewCADFamily_e for valid options |
|
|
Hide/show tree items - Blocks |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerBlocksVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerBlocksVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Design Binder |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignBinderVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignBinderVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Annotations |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerAnnotationsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerAnnotationsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Solid Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSolidBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSolidBodiesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Surface Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSurfaceBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSurfaceBodiesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - Tables |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTableFolderVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTableFolderVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Favorites |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerFavorites)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerFavorites,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - eDrawing Markups
(not supported in SOLIDWORKS
Connected) |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEDrawingMarkups)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEDrawingMarkups,
swAutoHideShowResponse_e.<Value>) |
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - Selection Sets |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSelectionSetsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSelectionSetsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Equations |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEquationsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEquationsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Material |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMaterialVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMaterialVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Default Planes |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDefaultPlanesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDefaultPlanesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Origin |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerOriginVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerOriginVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Mate References |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMateReferencesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMateReferencesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Design Table |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignTableVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignTableVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Sensors |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSensorVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSensorVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - History |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerHistory)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerHistory,
swAutoHideShowResponse_e.<Value>)
|
See
swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Graphic
Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMeshBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMeshBodiesVisibility,
swAutoHideShowResponse_e.<Value>) |
See
swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Markups |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMarkupsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMarkupsVisibility,
swAutoHideShowResponse_e.<Value>) |
See
swAutoHideShowResponse_e
for valid options |
|
