Contact Analysis of an Eyebar Assembly

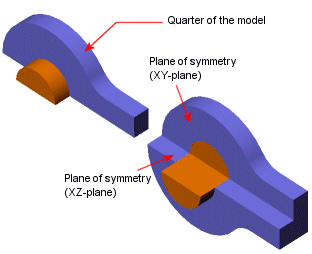

The eyebar assembly is loaded and supported as shown.

Due to double symmetry, you analyze one quarter of the model.

In this lesson, you learn the following:

Defining local interactions
Viewing principal stresses in exploded views
Plotting contact pressure
Customizing vector plots
Viewing and using Design Insight plots
