For each scenario, you view the results for the factor of safety and
maximum resultant displacement. The scenarios that violate the constraints are highlighted in
red.
-
On the Results View tab, select the Scenario 2 column.
Scenario 2 is highlighted in red as the
maximum resultant displacement is larger than 1 mm (set as constraint).
| Variables |
Scenario 2 |
| Right_Pedal_Force |
50 kgf |
| Left_Pedal_Force |
50 kgf |
| Right_Handle_Force |
25 kgf |
| Left_Handle_Force |
25 kgf |
| Rider_Seat_Weight |
0.001 kgf |
| Density |
0.0027 g/mm^3 |
| Yield_Strength |
5.5149e+007 N/m^2 |
| Poissons
Ratio |
0.33 |
| Elastic_Modulus |
6.9e+010 N/m^2 |
| Frame
Displacement |
1.30 mm |
| Minimum
FOS |
2.61 |
-
On the left frame of the study tab, open the Results and Graphs
folder and double-click Frame Displacement.

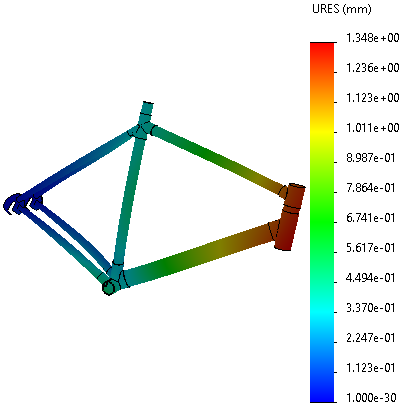

The program plots the resultant displacement plot for design
scenario 2.
The results from the other scenarios do not violate the maximum
displacement constraint.
Congratulations! You have
completed this
tutorial.
