Description
Calculate the large deformation response of a simply supported square plate of side 24" and thickness 0.12" subjected to uniform pressure of magnitude 3.125 psi.
File Name
Browse to
drive letter:\Users\Public\Public
Documents\SOLIDWORKS\SOLIDWORKS
version\samples\Simulation
Examples\Verification\Nonlinear_Static_1.SLDPRT and open the
file.
Shell Parameters
Shell thickness = 0.12" - thin shell formulation.
Material Model
Linear elastic isotropic.
Material Properties
Modulus of elasticity = 1 x 107 psi, Poisson's ratio = 0.3162.
Modeling Hints
Due to symmetry, only a quarter of the plate is modeled. Draft quality shell mesh is used.
Restraints and Loads

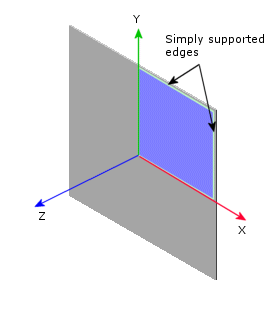

All edges are simply supported. The pressure load is applied as follows:
Results

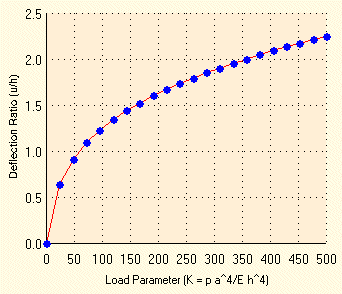

The load parameter versus the deflection ratio at the center of the plate is in good agreement with analytical results.
The results of the nonlinear analysis have been processed by a graphing software to generate the above graph.
Reference
Levy, S., "Bending of Rectangular Plates With Large Deflections," Technical Notes, National Advisory Committee for Aeronautics. No. 846, 1942.
