Steady State Heat Conduction in a Plate

Description

The temperature at one of the edges of a square plate 4mX4mX0.1m is maintained at 100 ºC. The temperature of the other 3 edges is maintained at 0 ºC. Find the temperature at the center of the plate.

File Name

Browse to drive letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS version\samples\Simulation Examples\Verification\Thermal_1.SLDPRT and open the file.

Mesh Type

Shell mesh.

Shell Parameters

Shell thickness = 0.1 m - Thin shell formulation.

Material Properties

Thermal conductivity = 43 w/(m.ºC).

Modeling Hints

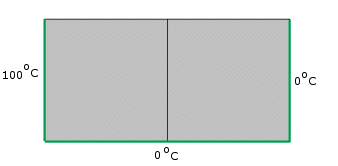

One half of the plate is modeled. The plate is split into two surfaces so that the center can be easily identified. S

Results

    Temperature at Center (ºC)
Theory 25
SOLIDWORKS Simulation High 25
Draft 25

Reference

Carslaw, H. S., and Jaeger, J. C., “Conduction of Heat in Solids,” 2nd edition, Oxford University Press, 1959.
