Description
A slab of

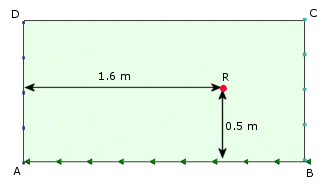

dimensions 2mX1mX1m has the following boundary conditions: heat flux of 10.4 W/m2 on the face AD, convection on the face AB with convection
coefficient of 1.2 W/(m2-K), and a radiation boundary
condition on the face BC with emissivity of 0.5. The ambient temperature for
convection and radiation is 100ºC. Calculate the steady state temperature at point R (1.6m,
0.5m).
File Name
Browse to
drive letter:\Users\Public\Public
Documents\SOLIDWORKS\SOLIDWORKS
version\samples\Simulation
Examples\Verification\Thermal_5.SLDPRT and open the
file.
Study Type
Steady state thermal analysis.
Shell Parameters
Shell thickness = 1 m - Thin formulation.
Meshing Parameters
Use a Global Size of 0.1 m.
Material Properties
Thermal conductivity = 1 W/(m.K).
Results
| |
Theory |
SOLIDWORKS Simulation |
| Temperature at point R, ºC |
101.69 |
101.69 |
Reference
R. Siegel and J. R. Howell, "Thermal Radiation Heat Transfer,".
