Opening the Assembly

Browse to drive letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS version\samples\Simulation Examples\Actuator.SLDASM and open the file.

The Partial-Static study includes:

A static study with the solver set to Intel Direct Sparse

Materials assigned as follows:

Component Name	Material	Material Source
actuator_casing-1, link1-1, link2-1, link2-2, and mounting_bracket-1	Alloy Steel	SOLIDWORKS material library
actuator_piston-1, and plunger-1	Cast Alloy Steel	SOLIDWORKS material library

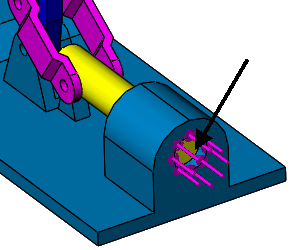

A 15 lb force applied to the end of the plunger as shown:
