Determine the cyclic variation of stresses and strains for a two-bar
assembly loaded axially by a constant mechanical load and a cyclic thermal load of ± 300
°C.
All
dimensions are in mm.

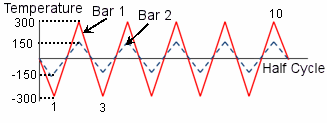

A mechanical load (P) = 700 N is applied to the rigid bar. Cyclic
thermal loads are applied to Bar 1 and Bar 2 as shown.
|
File Name
|
Open drive
letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS
version\samples\Simulation
Examples\Verification\NAFEMS_NL2C.SLDASM.
|
|
Study Type
|
Nonlinear static with large strain and large displacement
|
|
Mesh Size
|
Use standard mesh with a global element size of 0.577 mm.
|
|
Material Properties
|
Bar 1 and Bar 2
Model Type:
Plasticity - von Mises
| Material
Property |
Values |
| Bar 1 |
Bar 2 |
| Elasticity modulus (E) |
100000 MPa |
200000 MPa |
| Poisson's ratio (ν) |
0 |
0 |
| Yield stress (σy) |
500 MPa |
600 MPa |
| Tangent Modulus |
10000 MPa |
4000 MPa |
| Coefficient of thermal expansion |
2 x 10-5/K |
1 x 10-5/K |
| Hardening factor |
1 |
1 |
|
Rigid Bar
- Elastic Modulus (E) =
1x108 MPa
- Poisson's ratio (ν) =
0
The rigid bar is assigned stiffer material properties
to simulate the behavior of a rigid body.
|
Results

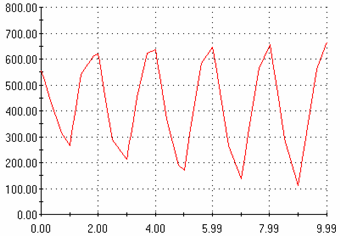

Plot the cyclic variation of stress component SX for Bar
1.
X-axis shows half cycles (pseudo time in sec) and Y-axis shows
stress in MPa.

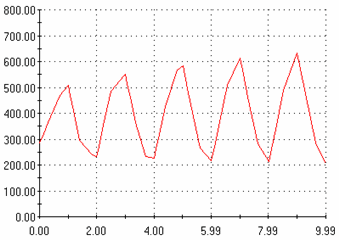

Plot the cyclic
variation of stress component SX for Bar 2.
X-axis shows half cycles
(pseudo time in sec) and Y-axis shows stress in MPa.
Reference
NAFEMS Publication R0026, The International Association
for the Engineering Analysis Community, “Selected Benchmarks for Material
Non-Linearity”, 1993.
