Determine the variation
of displacement components with applied load at B on a curved elastic cantilever under a
transverse end load.
All
dimensions are in inches.
|
File Name
|
Open drive
letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS version\samples\Simulation
Examples\Verification\NAFEMS_3DNLG5.SLDPRT.
|
|
Study Type
|
Nonlinear static with large displacement formulation
|
|
Mesh Size
|
Use a standard mesh with global element size of 0.80 in.
|
|
Material Properties
|
- Modulus of elasticity (E)
= 1 x 107 psi
- Poisson's ratio (ν) =
0
- Mass density (ρ) = 0.098
lb/in3
|
Results

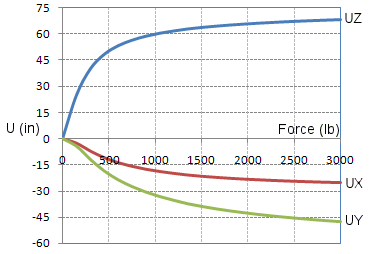

Plot the result for the displacement variation with applied load at B (at
center of the face where load is applied).
Process the results of the analysis using graphing software to
generate the graph.
The force-deflection curves agree with the finite element solution provided
in the reference.
| |
Tip Displacements (in) |
| |
Reference |
SOLIDWORKS Simulation
with Beams |
SOLIDWORKS Simulation
with Solids |
| Load (lbf) |
Ux |
Uy |
Uz |
Ux |
Uy |
Uz |
Ux |
Uy |
Uz |
| 600 |
-13.62 |
-23.78 |
53.59 |
-13.85 |
-23.81 |
53.66 |
-13.65 |
-23.65 |
53.55 |
| 3000 |
-25 |
-47.70 |
68.56 |
-25.21 |
-47.75 |
68.55 |
-25.06 |
-47.71 |
68.56 |
Reference
NAFEMS Publication R0024, The International Association for the Engineering
Analysis Community, "A Review of Benchmark Problems for Geometric Non-linear Behavior of 3-D
Beams and Shells (SUMMARY),
1993".
