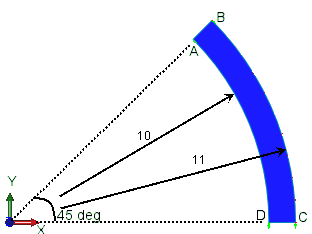

Determine the stress SY at D of a circular membrane with zero hoop
displacements on edges AB and CD and subjected to the following loading conditions:
Study A.
Uniform inward pressure of 100 MPa at outer edge BC.
Study B. Point
load of 50 x 102 KN radially inward at point B.
File
Name
Open drive
letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS
version\samples\Simulation
Examples\Verification\NAFEMS_IC5_6.SLDPRT.
|
Shell Parameters
|
Shell thickness = 1.0 m - Thick shell formulation
|
|
Material Properties
|
- Modulus of elasticity (E)
= 210 GPa
- Poisson's ratio (ν) =
0.3
- Density (ρ) = 7000
kg/m3
|
Results
| Case |
Stress component at D |
Reference |
SOLIDWORKS Simulation |
| Study A |
SY |
1150 MPa |
1152.4 MPa |
| Study B |
SY |
53.2 MPa |
53.4 MPa |
Reference
NAFEMS Publication P07, The International Association for the Engineering
Analysis Community, "Linear Statics Benchmarks VOL. 1," D. Hitchings, A. Kamoulakos, G.A.
Davies, VOL. 1, October, 1987.
