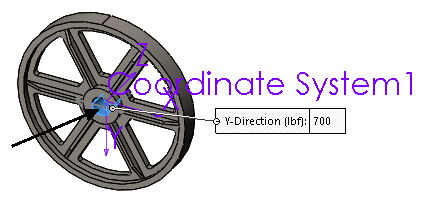

Applying Bearing Force Right-click the External Loads folder of the Partial-BearingLoad study and select Bearing Load . In the PropertyManager, click in Cylindrical Faces or Shell Circular Edges for Bearing Load , then select the lower face of the central hole as shown. Click in Select a Coordinate System , then select Coordinate System1 in the flyout FeatureManager design tree. Under Bearing Load: Select English (IPS) in Unit . Click Y-Direction and type 700. Select the Sinusoidal distribution option. Click . Parent topicAnalysis of a Pulley Under a Bearing Force Previous topic Opening the Part Next topic Meshing the Model and Running the Study
