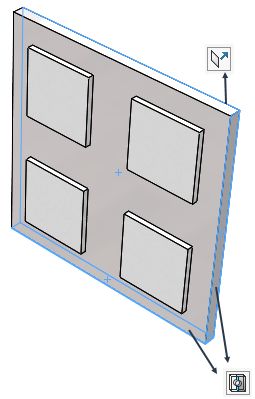

Fixing the Back Face of the Substrate

Fix the back face of the substrate as follows:

  1. In the Simulation study tree, right-click Fixtures in the ThermalStress study and select Fixed Geometry.
  2. In the PropertyManager on the Type tab, under Advanced click Use Reference Geometry.
  3. Click in the Faces, Edges, Vertices for Fixture box and select the back face of the substrate.
  4. Click in the Face, Edge, Plane, Axis for Direction box and select the Front plane from the flyout FeatureManager design tree.
  5. Under Translations, click Normal to Plane and set its value to 0.
  6. Click .
