Viewing Convergence Graphs

To generate convergence graphs:

  1. In the Simulation study tree, right-click the Results folder and select Define Adaptive Convergence Graph.
  2. In the PropertyManager, select all check boxes and click .

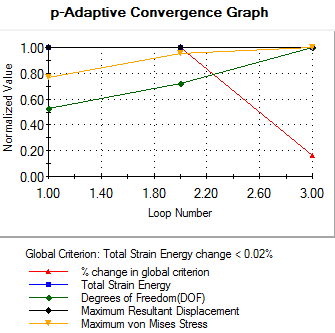

    The convergence graph of all checked quantities is displayed.

  3. Close the graph.
  4. Verify the results.
    The following table compares analytical results for the maximum normal stress in the global X direction (SX) to the SOLIDWORKS Simulation results with and without the p-method.
      Analytic p-Method Without p-Method
    maximum SX in psi 3024 3109 (~3%) 2610 (14% error)
