Viewing the Results of the Ready Study

The sample part includes a Ready study for you to run. It is good practice to run the initial studies to get an estimate of the results and verify that no build errors exist.

Click the Ready study, then click Run (Simulation CommandManager).
If prompted to continue in spite of excessive midside node offset, in the Linear Static dialog box, click Yes. The excessive mid-side node offset occurs only at small regions of intersection between the stays and the rear dropouts of the bicycle frame.
In the Simulation study tree, open the Results folder.

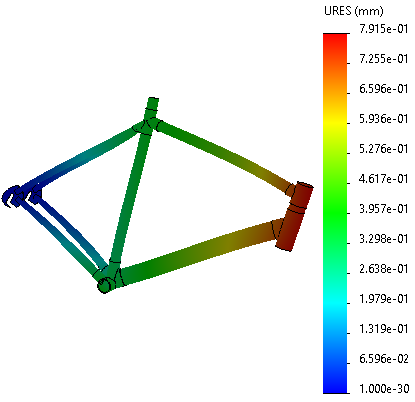

Double-click Displacement (-Res disp-) to display the resultant displacement plot.
The units are mm.
