Viewing and Animating Displacement Results

In the Simulation study tree, right-click the Results folder and click Define Displacement Plot .
In the PropertyManager under Display, select mm for Units .
Under Deformed shape, select User defined and enter 1 for Scale Factor .
Click .

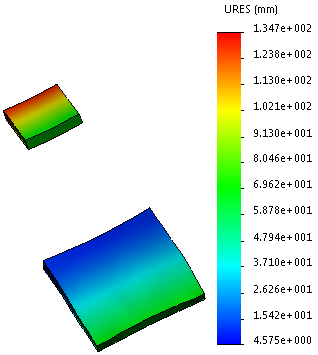

The following resultant displacement plot displays.
To animate the displacement plot:
1. In the Simulation study tree, right-click Displacement2 (-Res disp-) and click Animate .

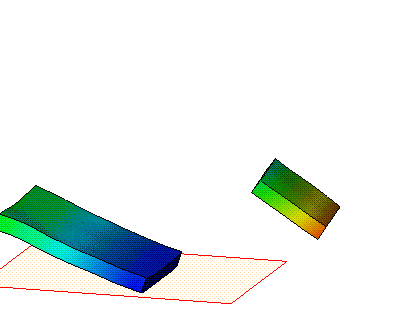

  The animation of the displacement plot shows.
  Click this animation to play it or to reset it.
2. Click to stop the animation.
3. Click .

Congratulations! You have completed this lesson.
