Defining the Bolt Connectors

In the Simulation study tree, right-click the Connections icon in the Partial study and select Bolt.
In the PropertyManager, under Type:
1. Click Standard or Counterbore with Nut .

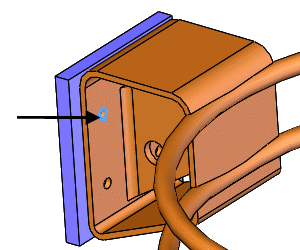

2. Select the edge shown for Circular Edge of The Bolt Head Hole .
3. Select the edge shown for Circular Edge of The Bolt Nut Hole .
4. Select Same head and nut diameter.
5. Select in for Unit then type 0.75 for Head Diameter .
6. Select in for Unit then type 0.35 for Nominal Shank Diameter .
7. Under Connection Type, select Rigid.
