Graphing Temperatures at Selected Locations

Right-click Thermal1 (-Temperature-) and select Probe .

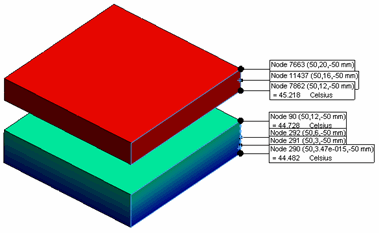

In the graphics area, click the locations shown in the figure starting at the top face of the chip.
The temperature values appear under Results in the PropertyManager.
Under Report Options, click Plot .

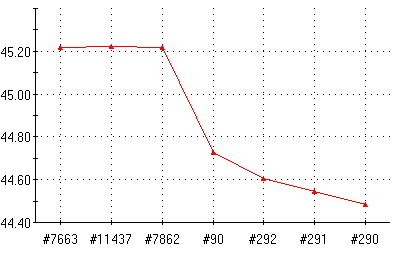

A plot of temperature versus location (in the same order of clicking) is displayed. The Y axis shows temperature in Celsius and the X-axis shows the node numbers at probed locations.
Click to close the graph window.
Click .

Congratulations! You have completed this lesson.
