Reassessing the Factor of Safety

To view the Factor of Safety plot:

In the Simulation study tree, right-click the Results folder and click Define Factor of Safety Plot .
In the PropertyManager, under Composite Options, select Tsai-Wu Criterion for Failure criteria for composites.
Click .
Under Composite Options, select Worst-case across all plies and click .

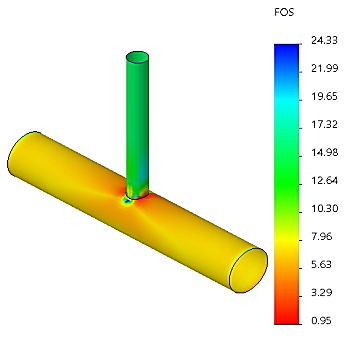

The FOS plot is displayed. The min FOS has increased to ~1 indicating that the joint with the 16-ply composite material is safe under this loading.

When composite shells fail for a specific loading, you can change the material properties, ply angles, or increase the number of plies, and rerun the study.
