Viewing Resultant Displacement

  1. In the Simulation study tree, open the Results folder.

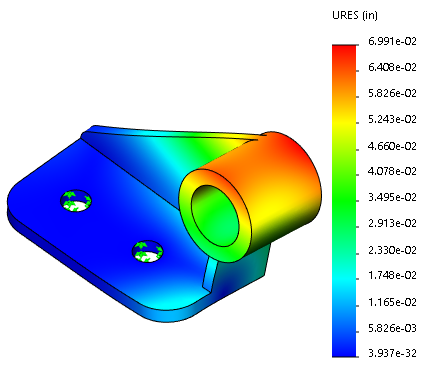

  2. Double-click Displacement1 (-Res disp-) to display the plot.

    If the plot does not exist, create this plot using steps 3, 4, or 5 in Viewing von Mises (Equivalent) Stresses.

Parent topicStatic (Stress) Analysis of a Part
Previous topic Viewing von Mises (Equivalent) Stresses
Next topic Animating a Plot
