Viewing Radial Stresses

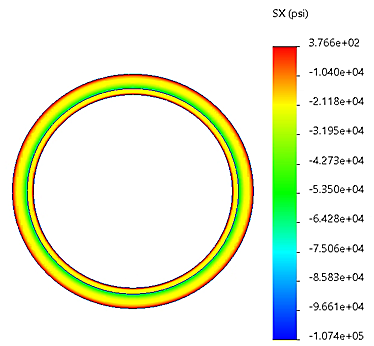

You view radial stresses with respect to the reference axis, Axis1.

In the Simulation study tree, right-click the Results folder and select Define Stress Plot .
In the PropertyManager under Display, select SX: X Normal stress in Component and psi in Units .
Under Advanced Options, select Axis1 in the flyout FeatureManager design tree for Plane, Axis or Coordinate System .
Clear Deformed shape.
Click .
