Viewing the Results of the New Model

In the Simulation study tree, right-click Stress1 (-vonMises-) in the Results folder and select Show.

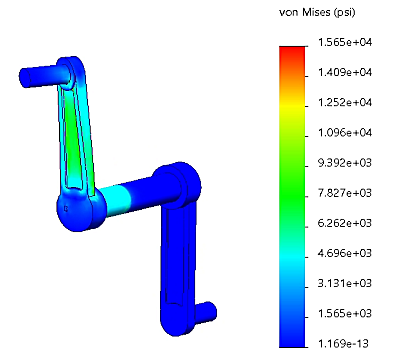

The von Mises stress plot is displayed.

Comparison to previous results shows small changes.
