When
you work with models in the graphics area, you can easily rotate, zoom, and select a preset
view of your model by using the Orientation dialog box
and the View
Selector.

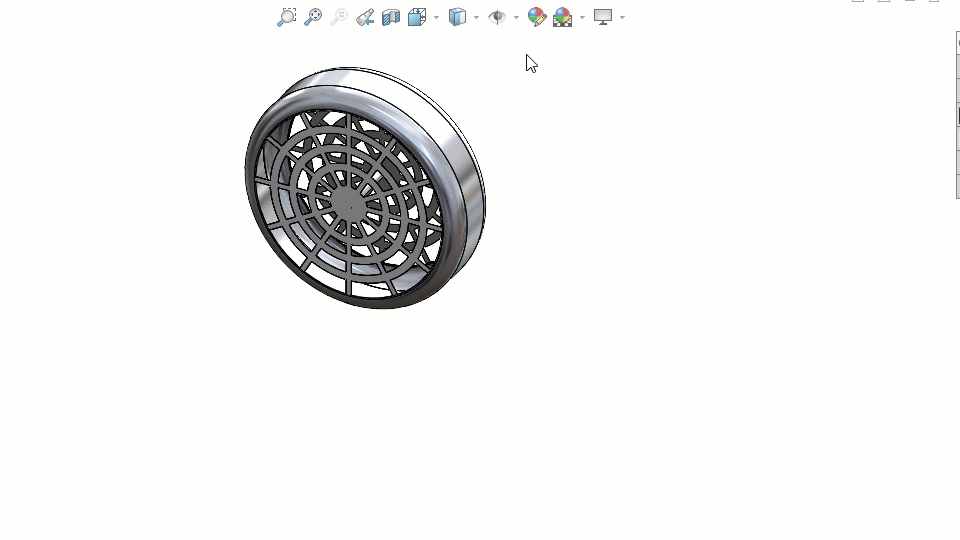

In parts and assemblies, you can display the Orientation dialog box to select a standard view, create and save custom
views, activate the View Selector, and use viewports.
Click this animation to play it or to reset it.

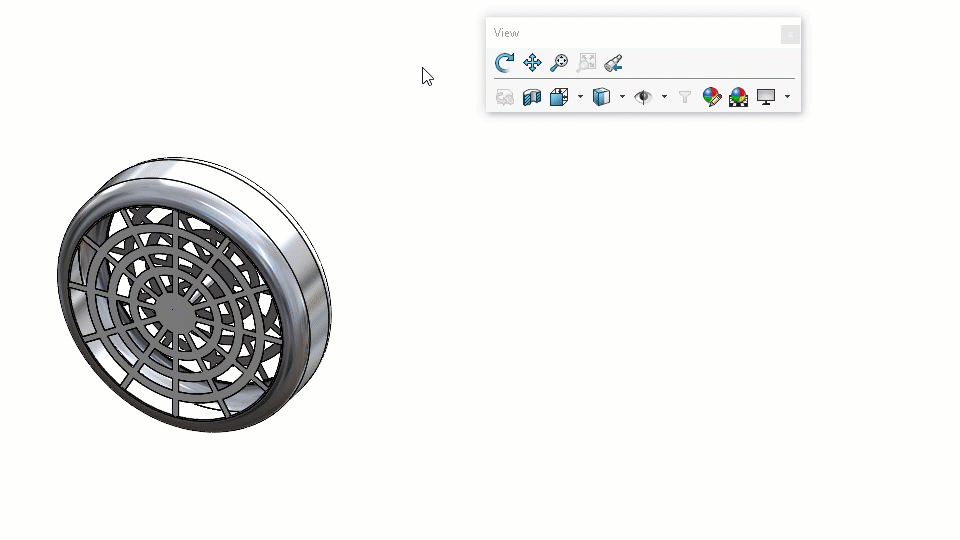

You can select model views in context using the View Selector
. This tool helps you see the right,
left, front, back, top, and axonometric views of your model.
Click this animation to play it or to reset it.
