Inserting an Annotation View

In the FeatureManager design tree, right-click Annotations and click Insert Annotation View.
In the PropertyManager, under Annotation Viewing Direction, select Back to reassign the product manufacturing information (PMI) to the Back annotation view.
Click Next .

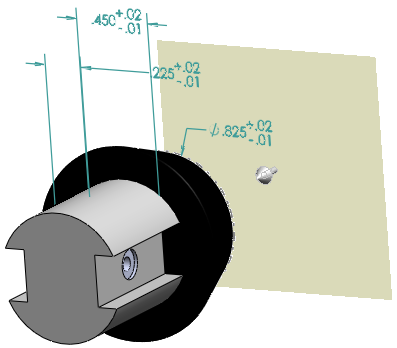

Select the diameter of the top face (0.825in), the width of the inner faces (0.450in), and the middle plane width (0.225in). These are listed in Annotation to Move.
Under Preview, click Orient View.
Click .
