Adding a Location Dimension from the Left Face to the Compound Hole

  1. Click Location Dimension (MBD Dimensions toolbar).

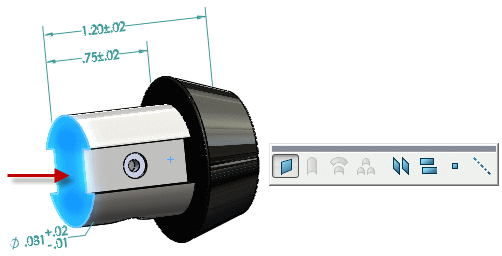

  2. Select the left face shown.

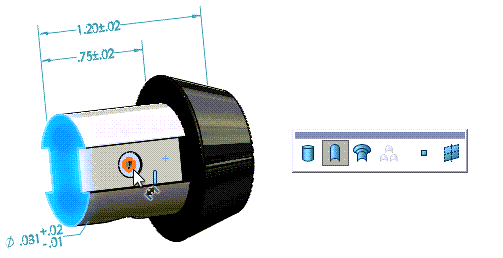

  3. Select the compound hole shown.

    Hole is automatically selected in the feature selector.
  4. Click to place the dimension.
    The dimension is placed between the left face and the center axis of the compound hole.
    To apply the dimension between the left face and the maximum or minimum distance of the hole, you can use the Leaders tab of the DimXpert PropertyManager. Under Arc Condition, select Min or Max.
  5. In the PropertyManager, under Style, select Bilateral.
  6. Click .
