Applying a Location Dimension to the Inner Flat Faces

Click Location Dimension (MBD Dimensions toolbar).

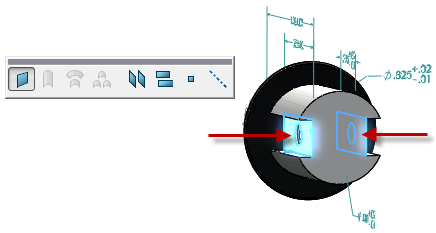

Select the right and left inner faces shown.
Click to place the dimension.
Click .
