Adding a Location Dimension to the Maximum Width

Orient the part as shown.
Click Location Dimension (MBD Dimensions toolbar).
Rotate the part slightly to the right and select the left face shown.

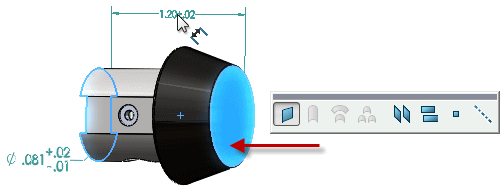

Rotate the part slightly to the left and select the right face shown.

Note that the Plane option on the feature selector is selected.
Click to place the dimension and in the PropertyManager, click .
