Opening the Part

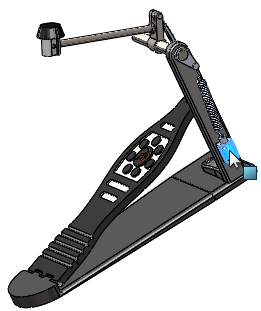

Browse to the location where you previously downloaded the sample files and open \advdimxpert\Drum_Pedal.SLDASM.
To open a part in position, right-click the spring system cylinder and click Open Part in Position .
