Applying a Size Dimension to the Hammer Head

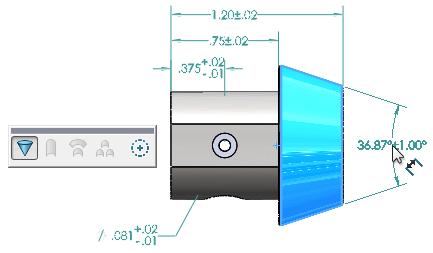

Orient the part as shown and click Size Dimension (MBD Dimensions toolbar).
Select the tapered face shown.

DimXpert automatically identifies the tapered face as a Cone in the feature selector and provides the taper angle.
Click to place the dimension.
Click .
