Next, you move the position of the plunger handle at 5 seconds.
-
Locate arm left in the MotionManager tree.

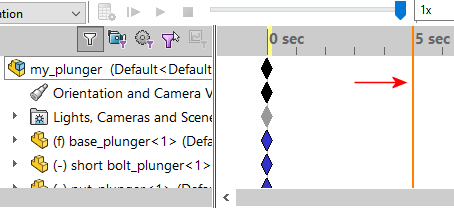

- Drag the time bar to 5 seconds.
You move the time bar before you set the animation position because the
component key points along the timeline define the component position at a
given time. If you set a component position at a key point without moving
the time bar, the position corresponds to the time bar time, and not the key
point time.
- In the graphics area, drag the arm left.sldprt component to a vertical position.

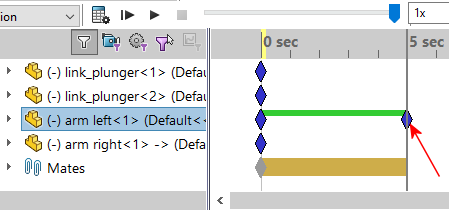

A new key point and changebar for the arm left component appears along the arm left timeline at 5 seconds.
If a new keypoint does not appear, verify that
Autokey
(MotionManager toolbar) is selected, then repeat step 3.
-

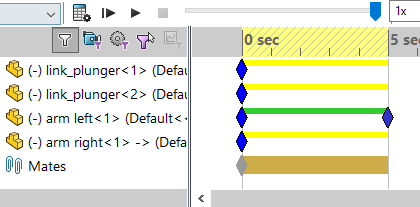

Click Calculate
(MotionManager toolbar).
The software calculates the animation and displays it in
the graphics area.
Your animation runs in a loop if the loop or reciprocate playback
modes are selected. You can select the normal playback mode to run
the animation one time without looping.

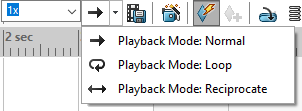

To set normal playback, click the
Playback Mode flyout (MotionManager
Toolbar) and click
Playback Mode:
Normal
.
