Applying Material Properties

Next, apply material properties to the template so it creates steel parts.

  1. In the FeatureManager design tree, right-click Material fm_material.png <not specified> and select Edit Material.
  2. In the dialog box, under SOLIDWORKS Materials:
    1. Expand Steel.
    2. Select Cast Stainless Steel.
  3. Click Apply and Close.
    The material in the FeatureManager design tree updates to Cast Stainless Steel fm_material.png.

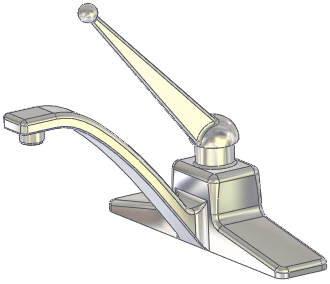

    Example: Part in cast stainless steel
