Mirroring the Screw Holes

Now mirror the holes to quickly copy the existing hole features across the Front plane.

1. Click Mirror on the Features toolbar.
2. In the PropertyManager:
   1. Under Mirror Face/Plane , select the Front plane in the FeatureManager design tree.
   2. Under Features to Mirror , select the hole feature in the FeatureManager design tree or in the graphics area.
3. Click OK .

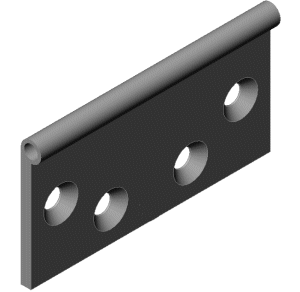

   The holes are mirrored across the large face of the hinge.
4. Click File > Save to This PC.
