Creating a Section View of the Shell

  1. Click Trimetric (Heads-up View toolbar).
  2. Click Section View (Heads-up View toolbar).
  3. In the PropertyManager, under Section 1, click Top Plane .
  4. Drag the handle up to show the section view.
  5. Click .

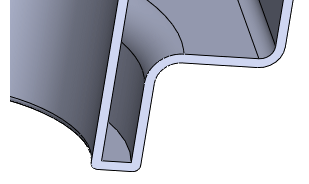

    You can rotate and zoom the section view. Only the display of the part is cut, not the model itself.

  6. Click Section View (Heads-up View toolbar) to clear the section view.
  7. Click File > Save to This PC.
