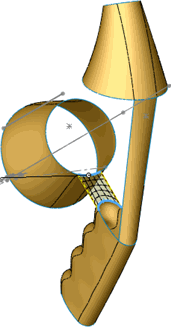

Next, connect the base to the grip.
-
Click Lofted Surface
on the Surfaces
tab.
-
Select the edges on the base and the grip for Profile
in the PropertyManager.
-
Under Start/End
Constraints:
-
Select Tangency To
Face for Start
constraint and End
constraint.
-
Set Start Tangent
Length to 3 and
End Tangent Length to
7.
Switch the start and end lengths as required, to
apply the value of 7 to the
side near the grip.
-
Under Options, select
Merge tangent faces.
-
Click OK
.
