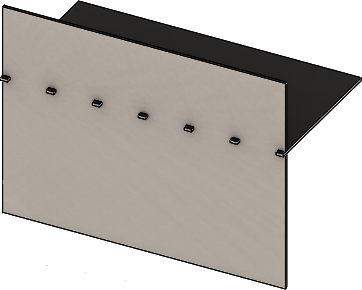

Creating a Tab and Slot

To create a tab and slot:

  1. In a part, click Tab and Slot (Sheet Metal toolbar) or Insert > Sheet Metal > Tab and Slot.
  2. In the PropertyManager, specify options.
  3. In the graphics area, select an edge for the tabs.
    The edges must be linear, the faces can be planar or cylindrical, but the edges and faces do not have to touch. If the faces are cylindrical, there can be only one body. Multiple bodies are unsupported.

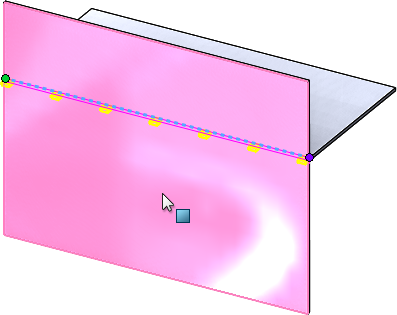

  4. For non-sheet metal parts, select a corresponding face for the slots.
    For sheet metal parts, SOLIDWORKS automatically selects a slot face that is normal to the edge to streamline the process.
  5. Click .
