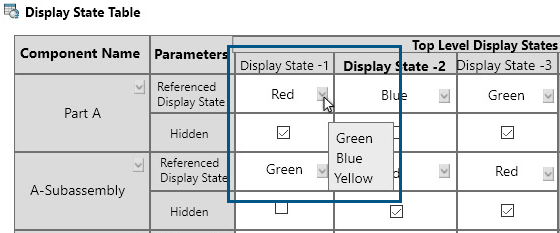

Display State Table Dialog Box

In assemblies with multiple display states, you can use the Display State Table to control the display states.

To access display state tables, in the ConfigurationManager , under Display States > Tables , click Display State Table. To open the table, right-click Display State Table and click Show Table.

Columns

Name Description
Component Name Displays the list of components and subassemblies for which you can specify the display state settings. You can specify the top-level assembly display state settings and select the component or subassembly display state to use in the top-level assembly display state.
Top Level Display States Lists the display states below it that the top-level assembly contains.
Display State - n Lists the display states in the top-level assembly. Select and clear check boxes to hide or show components or subassemblies for each top-level assembly display state.

To rename a display state, right-click a display state header cell and click Rename Display State.

To activate a different top-level display state, do one of the following:
  • Double-click a display state header cell
  • Right-click a display state header cell and click Switch to Display State.

Create a new display state Adds a new top-level assembly display state to the table. Double-click Create a new display state, enter the display state name, and click OK. The software automatically adds another blank Create a new display state column to create additional display states.

Controls

  Name Description
Hide/Show Referenced Display State Hides or shows the Referenced Display State row for each component in all top-level assembly display states.

To switch the component-level Referenced Display State, under the top-level display state column, for the component row, in the Referenced Display State cell, click and select the component-level display state to use.
  OK Saves all updates and closes the table.
  Apply Applies all updates and keeps the table open for additional changes.
  Cancel Cancels all updates and closes the table.
  Help Opens Help.
