Mapping Promote to Manufacturing and Procurable Property (2025 FD02)

When you save an assembly to 3DEXPERIENCE for the first time and select Promote, 3DEXPERIENCE maps the Manufacturable/Procurable property to the assembly file.

Benefits: The Manufacturable/Procurable property appears in the 3DEXPERIENCE file properties of the assembly. You can filter items in the Engineering Release app on the platform based on their manufacturability and procurability status.

To promote an assembly in SOLIDWORKS to 3DEXPERIENCE:
  1. Open the FeatureManager design tree for the assembly.
  2. Select the ConfigurationManager.
  3. Select the configuration and right-click Physical Product > Edit Physical Product > Promote.

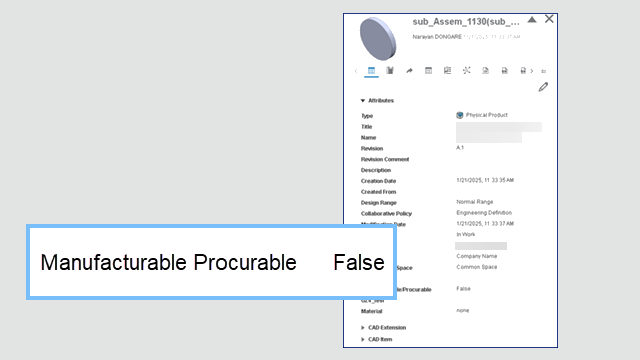

When you promote an assembly file to 3DEXPERIENCE, the Manufacturable/Procurable property is set to False.

Similarly, if you set the Show/Hide property in SOLIDWORKS, Manufacturable/Procurable is set to True in 3DEXPERIENCE.

This update also applies to the Batch Save to 3DEXPERIENCE tool.
