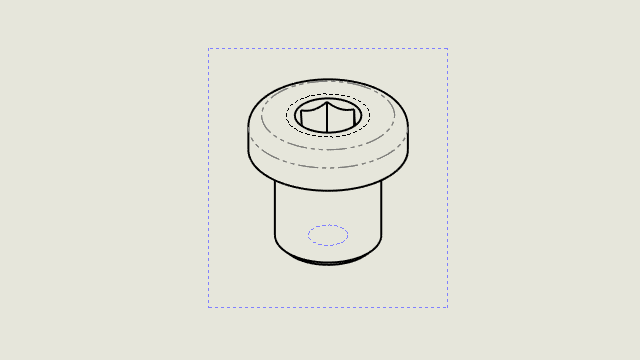

You can insert and view
cosmetic threads in assembly drawings.
This enhancement was first included in SOLIDWORKS 2024 SP2 but not
fully documented at that time. We include it here to promote full customer awareness
of the enhancement.
Benefits: You have more control over whether or not you want to
insert and view cosmetic threads in assembly drawings.
Previously, when you inserted cosmetic threads into
an
assembly,
you did not see the cosmetic
threads in drawings
automatically. You had to click
to
see the cosmetic threads.
To
insert cosmetic threads into assembly drawings:
- Click .
- Under Auto insert on view
creation, select Cosmetic Threads -
assembly (may affect performance), and click OK.
To
import
cosmetic threads in assembly drawings:
- In the Drawing View
PropertyManager, under Import options,
select Import annotations and Cosmetic threads.
- Click
.
