You
can remove unused files from your local cache in the 3DEXPERIENCE Files on This PC tab using the Cleanup
tool.
Benefits:
This
tool helps you free up disk space on your local machine and simplifies file organization
without affecting files stored on the 3DEXPERIENCE
platform.
To use the Cleanup
tool:

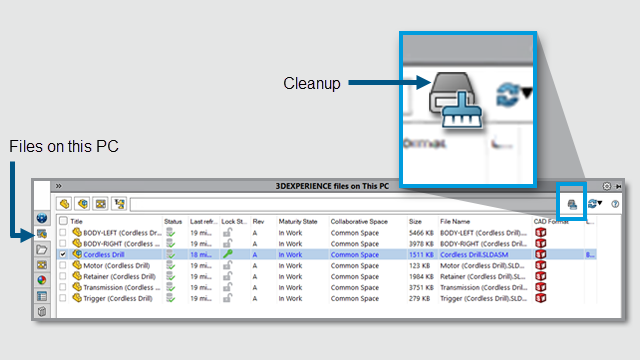

- In the Task Pane, click the 3DEXPERIENCE Files on this
PC tab. Then click Cleanup
in the toolbar.
- In the dialog box, select a timeframe to delete files based on
their Last Refreshed date on the platform.
You can also remove files manually using
the
Delete from this PC command:
- Right-click the files and select Delete from this PC in the 3DEXPERIENCE Files on This PC tab.
- If the files contain an assembly or multibody parts, select one
of these options:
- Delete only the selected
files. Removes the chosen files but keeps the referenced
files intact.
- Delete the selected files and
their references. Removes the chosen files along with
their references.
Deleting files removes them from your local cache but remain available on the
3DEXPERIENCE platform. The
3DEXPERIENCE Files on This PC tab refreshes automatically.
Files cannot be deleted if:
- An assembly contains references that do not meet deletion
conditions.
- Files have local modifications.
- Files are open in the current session.
- Files are locked by you.
A warning message will appear, if no files meet the criteria for
deletion.
