In a single physical product
file with no CAD
family, 3DEXPERIENCE users can sync the
SOLIDWORKS title to the physical product title.
Benefits: This approach
avoids title
sync issues for single physical products
with
no CAD family.
To sync a single physical product file:
- Open a part or assembly that is a single physical product file. It
must not have a CAD
family
on the Configurations tab.
- Click .

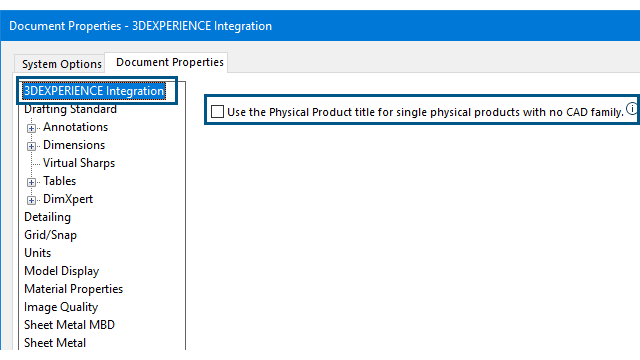

- In the dialog box, select
Use the
Physical
Product title for single physical products with no CAD
family, then click OK.
In offline mode, the software uses the last known values for
the physical product title.
The Rename
Title dialog box remains unchanged for models that are not single
physical products. If you change a single physical product model to a
multiple
physical product model, for example by adding a CAD
family,
the title reverts to the name you define. Also, subsequent changes use the existing
style of the Rename Title dialog box.
