SOLIDWORKS PDM Professional API Help
Traverse Folders and Files in Vault Example (VB.NET)
This example shows how to recursively traverse all of the folders and files
in a vault.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' 2. Click File > New > Project > Dropdowns:
Visual Basic, Windows, Desktop > Windows Forms App. Click
Next.
' 3. Type TraverseFilesFolders in Project
name.
' 4. In
Location click ... and navigate to the folder where to create the project.
Click Next.
' 5. Select a
supported .NET Framework installed on your computer. Click Create.
' 6. Replace the code in Form1.vb with this code.
' 7. Replace the code in Form1.Designer.vb with
this code.
' 8. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add >
Project Reference, click
Browse,
' navigate to the top folder of your SOLIDWORKS PDM Professional installation,
' locate and select EPDM.Interop.epdm.dll).
Click OK.
' 9. Click
Show All Files in the tool bar. Right-click Dependencies
> Assemblies >
' EPDM.Interop.epdm, click Properties, and set
' Embed Interop Types to No to handle methods that pass arrays of
' structures.
' 10. Ensure
that the vault contains one or more checked-out files.
' 11. Click Debug > Start Debugging or press F5.
'
' Postconditions:

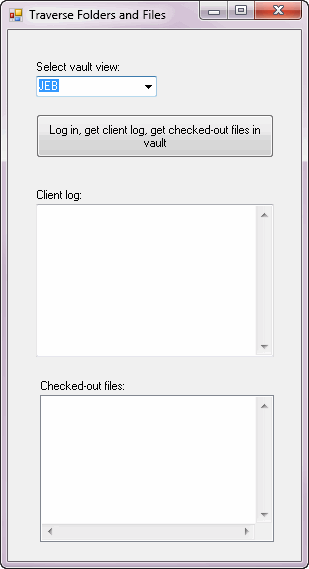

' 1. Displays a Traverse
Folders and Files dialog.
' 2. Select a vault.
' 3. Click Log
in, get client log, get checked-out files in vault.
' 4. Displays a message box with the vault type.
' 5. Click OK.
' 6. Populates Client log and Checked-out files.
' 7. Close the dialog.
'----------------------------------------------------------------------------
'Form1.vb
Imports EPDM.Interop.epdm
Public Class TraverseFilesFolders
Dim vault As IEdmVault20
Public Sub TraverseFilesFolders_Load(
ByVal sender As System.Object,
ByVal e As System.EventArgs) _
Handles MyBase.Load
Try
Dim Views() As EdmViewInfo = Nothing
Dim vault5 As IEdmVault5 = New EdmVault5()
vault = DirectCast(vault5, IEdmVault20)
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = VaultsComboBox.Items(0)
End If
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub TraverseFoldersButton_Click(
ByVal sender As System.Object,
ByVal e As System.EventArgs) _
Handles TraverseFoldersButton.Click
Try
'Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text,
Me.Handle.ToInt32())
MessageBox.Show(vault.GetVaultType().ToString(), "Vault type")
Dim log As String = Nothing
vault.GetClientLog(log)
TextBox1.Text = log
TraverseFolder(vault.RootFolder)
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub TraverseFolder(
ByVal CurFolder As IEdmFolder5)
Try
'Enumerate the files in the folder
Dim FilePos As IEdmPos5
FilePos = CurFolder.GetFirstFilePosition
Dim file As IEdmFile5
While Not FilePos.IsNull
file = CurFolder.GetNextFile(FilePos)
'Get its checked out status
If file.IsLocked Then
ListBox2.Items.Add(file.LockPath)
End If
End While
'Enumerate the subfolders in the folder
Dim FolderPos As IEdmPos5
FolderPos = CurFolder.GetFirstSubFolderPosition
While Not FolderPos.IsNull
Dim SubFolder As IEdmFolder5
SubFolder = CurFolder.GetNextSubFolder _
(FolderPos)
TraverseFolder(SubFolder)
End While
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class TraverseFilesFolders
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.Label1 = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.TraverseFoldersButton = New System.Windows.Forms.Button()
Me.Label2 = New System.Windows.Forms.Label()
Me.Label3 = New System.Windows.Forms.Label()
Me.ListBox2 = New System.Windows.Forms.ListBox()
Me.TextBox1 = New System.Windows.Forms.TextBox()
Me.SuspendLayout()
'
'Label1
'
Me.Label1.AutoSize = True
Me.Label1.Location = New System.Drawing.Point(22, 34)
Me.Label1.Name = "Label1"
Me.Label1.Size = New System.Drawing.Size(91, 13)
Me.Label1.TabIndex = 0
Me.Label1.Text = "Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(25, 50)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 1
'
'TraverseFoldersButton
'
Me.TraverseFoldersButton.Location = New System.Drawing.Point(25, 89)
Me.TraverseFoldersButton.Name = "TraverseFoldersButton"
Me.TraverseFoldersButton.Size = New System.Drawing.Size(212, 34)
Me.TraverseFoldersButton.TabIndex = 2
Me.TraverseFoldersButton.Text = "Log in, get client log, get checked-out files in vault"
Me.TraverseFoldersButton.UseVisualStyleBackColor = True
'
'Label2
'
Me.Label2.AutoSize = True
Me.Label2.Location = New System.Drawing.Point(22, 144)
Me.Label2.Name = "Label2"
Me.Label2.Size = New System.Drawing.Size(53, 13)
Me.Label2.TabIndex = 4
Me.Label2.Text = "Client log:"
'
'Label3
'
Me.Label3.AutoSize = True
Me.Label3.Location = New System.Drawing.Point(24, 310)
Me.Label3.Name = "Label3"
Me.Label3.Size = New System.Drawing.Size(89, 13)
Me.Label3.TabIndex = 5
Me.Label3.Text = "Checked-out files:"
'
'ListBox2
'
Me.ListBox2.FormattingEnabled = True
Me.ListBox2.HorizontalScrollbar = True
Me.ListBox2.Location = New System.Drawing.Point(27, 326)
Me.ListBox2.Name = "ListBox2"
Me.ListBox2.ScrollAlwaysVisible = True
Me.ListBox2.SelectionMode = System.Windows.Forms.SelectionMode.None
Me.ListBox2.Size = New System.Drawing.Size(210, 160)
Me.ListBox2.TabIndex = 6
'
'TextBox1
'
Me.TextBox1.Location = New System.Drawing.Point(25, 160)
Me.TextBox1.Multiline = True
Me.TextBox1.Name = "TextBox1"
Me.TextBox1.ScrollBars = System.Windows.Forms.ScrollBars.Both
Me.TextBox1.Size = New System.Drawing.Size(212, 147)
Me.TextBox1.TabIndex = 7
'
'TraverseFilesFolders
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(258, 509)
Me.Controls.Add(Me.TextBox1)
Me.Controls.Add(Me.ListBox2)
Me.Controls.Add(Me.Label3)
Me.Controls.Add(Me.Label2)
Me.Controls.Add(Me.TraverseFoldersButton)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.Label1)
Me.Name = "TraverseFilesFolders"
Me.Text = "Traverse Folders and Files"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents Label1 As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents TraverseFoldersButton As System.Windows.Forms.Button
Friend WithEvents Label2 As Label
Friend WithEvents Label3 As Label
Friend WithEvents ListBox2 As ListBox
Friend WithEvents TextBox1 As TextBox
End Class
