System Options > Export > IFC

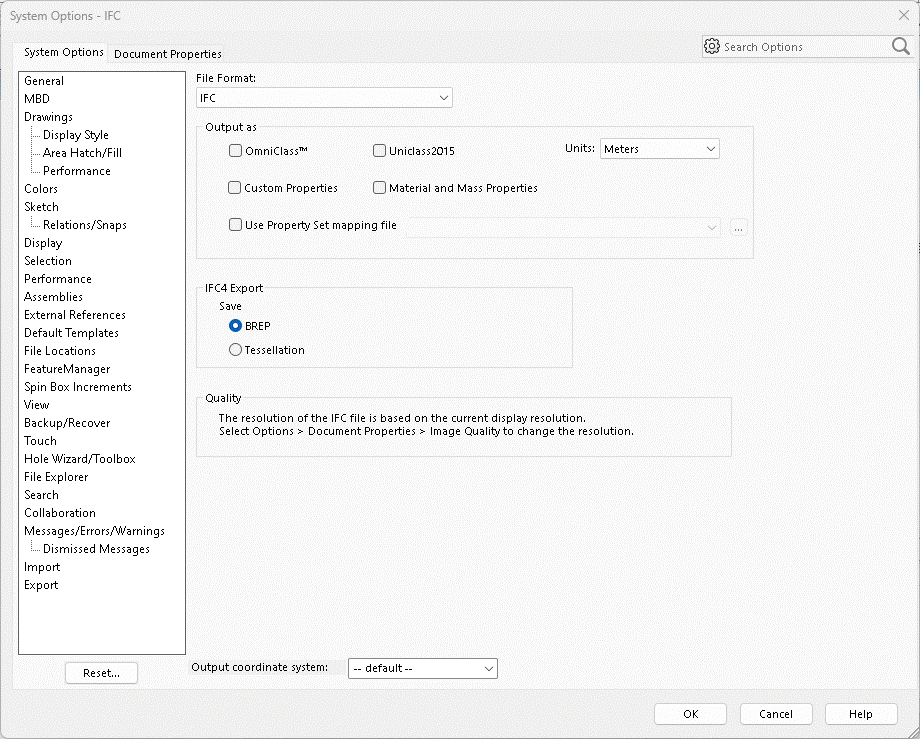

This topic contains two tables. The information in the table:

  • appearing immediately after the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > IFC in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select IFC 2x3 or IFC 4.
  3. Click Options.







Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Output as - OmniClass™

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCOmniClassPreference)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCOmniClassPreference, <OnFlag>)

Boolean value









Output as - UniClass2

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCUniClass2Preference)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCUniClass2Preference, <OnFlag>)

Boolean value









Output as - Custom Properties

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCCustomPropsPreference)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCCustomPropsPreference, <OnFlag>)

Boolean value



Output as - Material and Mass Properties

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCMaterialsMassPropertiesPreference)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCMaterialsMassPropertiesPreference, <OnFlag>)

Boolean value



Output as - Units

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportIFCUnits)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportIFCUnits, swLengthUnit_e.<Value>)

Any of the following swLengthUnit_e values:

  • 0 = swMM (millimeters)

  • 1 = swCM (centimeters)

  • 2 = swMETER

  • 3 = swINCHES

  • 4 = swFEET



Output as - Use Property Set mapping file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCExportUsePropertySetMappingFile)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIFCExportUsePropertySetMappingFile, <OnFlag>)

Boolean value



Property Set mapping file

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swIFCExportPropertySetMappingFile)

ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swIFCExportPropertySetMappingFile, <Value>)

String value

See example XML mapping file(s) in install_dir\lang\<language>\IFC



XML structure:

<CustomPropertiesPSETMapping>

    <Schema Version="1.0"/>

    <PropertySet Name="Pset_DoorCommon">

        <AppliesTo ElementType="IFCDOOR"/>

        <PropertyMapping SOLIDWORKS="Reference" IFC="Reference" Type="IfcIdentifier"/>

        <PropertyMapping SOLIDWORKS="FireRating" IFC="FireRating" Type="IfcLabel"/>

        <PropertyMapping SOLIDWORKS="NoiseRating" IFC="AcousticRating" Type="IfcLabel"/>

        <PropertyMapping SOLIDWORKS="Security" IFC="SecurityRating" Type="IfcLabel"/>

        <PropertyMapping SOLIDWORKS="External" IFC="IsExternal" Type="IfcBoolean"/>

        <PropertyMapping SOLIDWORKS="Infiltration" IFC="Infiltration" Type="IfcVolumetricFlowRateMeasure"/>

        <PropertyMapping SOLIDWORKS="ThermalTransmit" IFC="ThermalTransmittance" Type="IfcThermalTransmittanceMeasure"/>

        <PropertyMapping SOLIDWORKS="Verglasungsflächenanteil" IFC="GlazingAreaFraction" Type="IfcPositiveRatioMeasure"/>

        <PropertyMapping SOLIDWORKS="Accessible" IFC="HandicapAccessible" Type="IfcBoolean"/>

        <PropertyMapping SOLIDWORKS="FireDoor" IFC="FireExit" Type="IfcBoolean"/>

        <PropertyMapping SOLIDWORKS="StarTrekDoor" IFC="SelfClosing" Type="IfcBoolean"/>

        <PropertyMapping SOLIDWORKS="SmokeStop" IFC="SmokeStop" Type="IfcBoolean"/>

    </PropertySet>

    <PropertySet Name="ACME_CageCodes">

        <AppliesTo ElementType="IFCDOOR"/>

        <AppliesTo ElementType="IFCWINDOW"/>

        <PropertyMapping SOLIDWORKS="RefCode" IFC="CageCode" Type="IfcLabel"/>

    </PropertySet>

</CustomPropertiesPSETMapping>



IFC4 Export - Save - BREP or Tessellation

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swIFCExportSaveType)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swIFCExportSaveType, swIFCExportSaveType_e.<Value>)

swIFCExportSaveType_e.swIFCExportSaveType_BREP

 - or -

swIFCExportSaveType_e.swIFCExportSaveType_Tessellation



Output coordinate system

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem)

ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem, <Value>)

String value



Obsolete Enumerators

Enumerator

Comment

swIFCOmniUniClassPreference

Obsolete

swExportIFCUniClass2

Obsolete

swExportIFCType

Obsolete
