The Data Card tab displays the card variables and values for the selected
file.
To display the Data Card tab, do one of the following:
- Click the file name and select the Data Card tab.

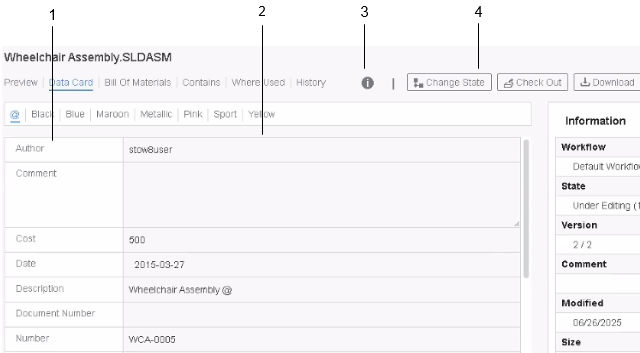

Data Card Tab
The
Data
card is displayed in either a
flat
or tree layout, depending on the option selected by the Administrator in the
Web Card Configuration Editor dialog box in
the Administration tool.
| 1 |
Variable names |
Displays the name of the variable
as defined by the administrator. |
| 2 |
Variable value fields |
Displays the value for variables. |
| 3 |
File
Information
icon |
Click  . Displays the
information of the file, for example, workflow, the current state,
and the
version. |
| 4 |
Action Buttons |
For example,
Change
State. |
Web2 does not support images and control logic.
