Connector
blocks represent electrical connectors in flattened
drawings.
When creating a connector block, you select which views and elements of the connector you
want to display in the flattened drawing.
 |
 |

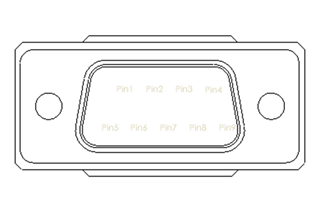

| A connector block representing the
top view of a connector. |
A connector block representing the
front view of a connector. |
