New
Cable
 |
Opens the cable catalog, where you can
select references to add to the electrical project. For more
information, see |
Delete
 |
Deletes the selected cables. A cable is
not deleted if its cores are in use. |
Properties
 |
Shows the properties of the selected
cable. For more information, see |
Duplicate
 |
Copies individual or multiple cables
including all their associated properties such as part and
function path. The numbering is automatically
incremented. |
Replace
 |
Replaces the selected cable with another
from the catalog. The new cable must have at least as many
cores as the cable being replaced. |
Switch
 |
Switches the origin and destination of
the cable. |
Dissociate
cable core
 |
Disconnects the selected cable
cores. |
Switch cable
cores
 |
Swaps two selected cable cores. Ensure
that at least one core is connected to wires. After the
swap, the app automatically reassigns wires to the cores. You can switch cable cores having
different types or properties.
|
Undo
 |
Cancels the last command used. |
Redo
 |
Cancels the result of the last Undo
command used. |
Go to
drawing
 |
Navigates to the schematic where the
cable or core is placed. |
Go to
browser
 |
Opens the component browser and
highlights the cable’s origin component. |
Tree
mode
 |
Manages the type of display for the
cables list. The cables can be grouped by function or
origin/destination. |
Filters
 |
Enables
the Filter tab to
filter the list of
circuits. |
Automatic
 |
Selects the cables automatically. |
Manual
|
Selects the cables manually. |

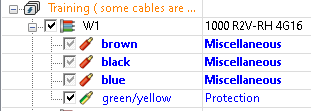

| Pre-reserved
cables |
Automatically hides all cables except
those that have been
reserved. |
